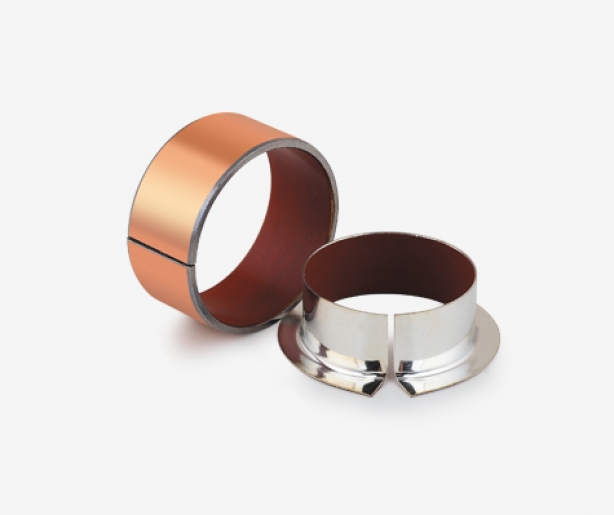

SF-1D SF-1D bearing for hydraulic industry

SF-1D
1.Designed based on the SF-1P and combined with the working principle of cylinder and shock absorber.
2.Superior wear resistence performance without oil lubrication.
3.Especially suitable for large lateral force occasions with frequent reciprocation except for the advantages of SF-1P
4.Performance is similar to DP4 abroad

Application
1.Shock absorbers of automobile and motorcycle
2.Various hydraulic cylinders

Contact Us >
Technical Parameter

Max load pressure: 140N/mm²

Friction Coef. μ: 0.04-0.20

Applicable temperature : -195℃-280℃

Max allowable PV value (dry): 3.8N/mm²·m/s

Max sliding speed: 3m/s

Max allowable PV value (oil): 50N/mm²·m/s
