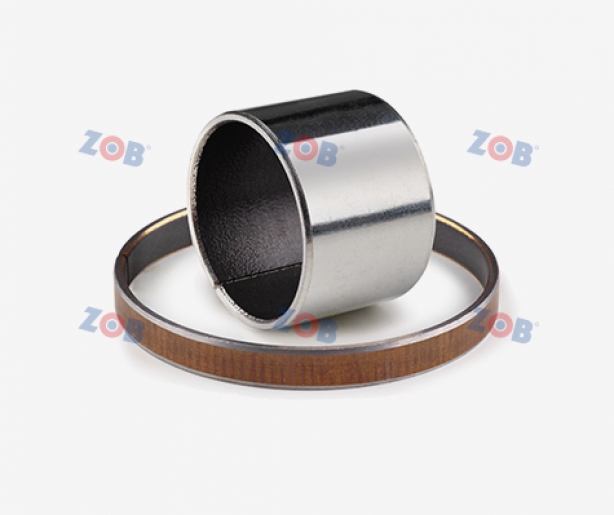

SF-1PI polyimide self-lubricating bearing

Structure
Steel plate-- copper powder layer -- modified PI+ material

Feature
1.High mechanical strength, able to withstand high intensity alternating loads
2.Good wear and fatigue resistance
3.Excellent insulation, and able to effetively avoid electrostatic sparks on the surface of the friction pair.

Application:
1.High-frequency swing occasions

Contact Us >
Technical Parameter

SF-1PI oilless bearing is made of low carbon steel plate as base material, thesurface is sintered with porous bronze powder, and then coated with a layer ofpolyimide (PI) modified PTFE material, and the plate is rolled into a bushingand other types. Due to the polyimide is a high mechanical strength of organicpolymer materials, it can withstand high-strength alternating loads, goodfatigue resistance, and does not absorb water, corrosion resistance, so theproduct is very suitable for automotive tensioner and other applications of highloads, frequent changes in the swing; in addition, polyimide materials havegood thermal stability, it can be used for a long time at 300°Ctemperature, sothe product can also be used for high temperature applications such as elec-tronic baking.



Max load 140N/mm2 Friction coefficient u 0.04-0.20
Temperature range -195°C-300°C Max PV (dry) 3.6N/mm2.m/s
Max sliding speed 3m/s Max PV (oil) 50N/mm2.m/s
