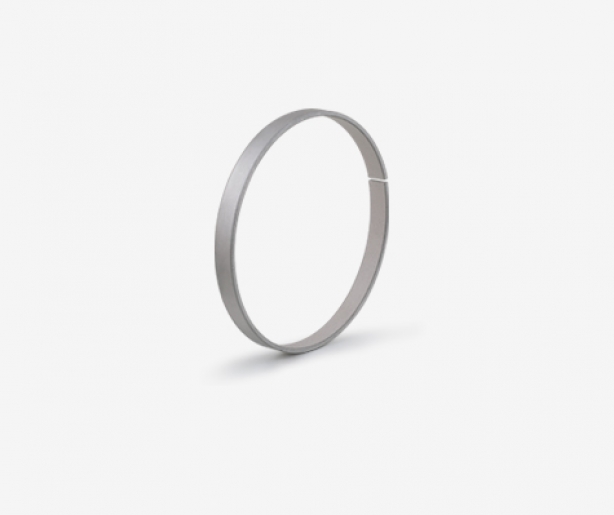

SF-1CS SF-1CS oilless lubricating bearing for planetary gear of gearbox

SF-1CS
1.Developed based on the SF-1W materials
2.Designed according to the special working conditions of planetary gear of gearbox
3.Lead free
4.White PTFE, performance is similar to P141 abroad

Features
1.Good self-lubricating performance
2.Excellent wear resistance
3.High fatigue strength
4.Long service life

Application:
1.Sliding parts of planetary gear
2.Shifting fork
3.Sliding parts of solenoid valves

Contact Us >
Technical Parameter



Max load pressure: 140N/mm²

Friction Coef. μ: 0.04-0.20

Applicable temperature : -195℃-280℃

Max allowable PV value (dry): 3.6N/mm²·m/s

Max sliding speed: 5m/s

Max allowable PV value (oil): 50N/mm²·m/s
